Building a Serverless Quiz Application with LocalStack

Introduction

Interactive quiz applications are popular for education, training, and engagement platforms. Building them with serverless architecture provides scalability, cost-effectiveness, and simplified maintenance. In this tutorial, we’ll create a complete serverless quiz application using AWS Lambda, DynamoDB, and API Gateway.

Our quiz application will allow users to:

• Create new quizzes with multiple-choice questions
• Submit quiz responses and receive immediate scoring
• View quiz results and leaderboards

Using LocalStack, we can develop and test this entire serverless infrastructure locally before deploying to AWS, enabling rapid development cycles and cost-effective testing.

Prerequisites

For this tutorial, you will need:

• LocalStack Pro with a valid auth token
• AWS CLI with awslocal wrapper
• AWS CDK with cdklocal wrapper (optional)
• Python 3.11+ and pip
• curl for testing API endpoints
• make (optional, but recommended for running the sample application)

Architecture

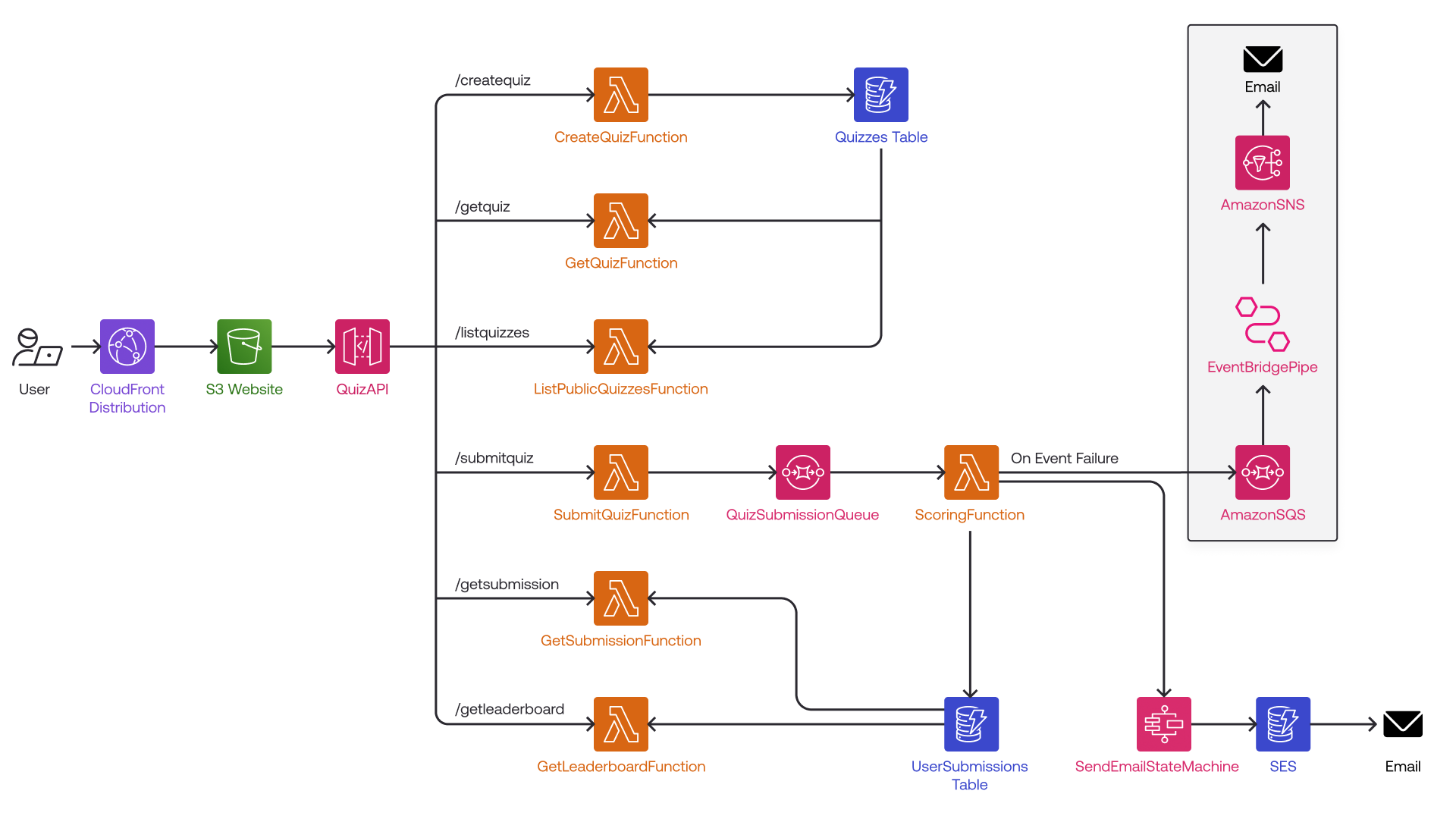

The following diagram shows the serverless architecture we’ll build:

The architecture consists of:

• API Gateway: REST API endpoints for quiz operations with Lambda integrations
• Lambda Functions: Serverless functions handling quiz operations (create, submit, score, retrieve)
• DynamoDB Tables: NoSQL database storing quiz metadata (Quizzes) and user submissions (UserSubmissions)
• CloudFront Distribution: Global delivery of frontend assets with caching
• S3 Bucket: Static website hosting for the quiz frontend interface
• SQS: Managing asynchronous submissions with Dead Letter Queue for failed processing
• SNS Topics: Alert notifications and system integration
• Step Functions: Email notification workflows
• IAM Roles and Policies: Least-privilege access control for all services

Request Flow

1. Client sends HTTP requests to API Gateway endpoints
2. API Gateway triggers corresponding Lambda functions
3. Lambda functions interact with DynamoDB for data persistence
4. Responses are returned through API Gateway to the client
5. Static frontend is served from S3 bucket via CloudFront distribution

Getting Started

Clone the Repository

First, clone the sample repository and navigate to the project directory:

git clone https://github.com/localstack-samples/sample-serverless-quiz-app.git
cd sample-serverless-quiz-app

Set up the Environment

Create a Python virtual environment and install dependencies:

python -m venv .venv
source .venv/bin/activate  # On Windows: .venv\Scripts\activate
pip install -r tests/requirements-dev.txt

Deploying the Application

Start LocalStack

First, start LocalStack with your auth token:

localstack auth set-token <your-auth-token>
localstack start

Deploy the Infrastructure

You can deploy the application using either AWS CLI or CDK:

Option 1: AWS CLI Deployment (Recommended)

Deploy the complete serverless infrastructure using the provided script:

bin/deploy.sh

Option 2: CDK Deployment

Alternatively, deploy using AWS CDK with LocalStack:

cd cdk
cdklocal bootstrap
AWS_CMD=awslocal CDK_CMD=cdklocal bash ../bin/deploy_cdk.sh

Both deployment methods will:

1. Create DynamoDB tables for quizzes and submissions
2. Deploy Lambda functions for quiz operations
3. Set up API Gateway endpoints
4. Configure S3 bucket for static hosting
5. Seed sample quiz data

The deployment output will show:

CloudFront URL: https://1e372b81.cloudfront.localhost.localstack.cloud
API Gateway Endpoint: http://localhost:4566/_aws/execute-api/4xu5emxibf/test

Testing the Application

The application includes comprehensive testing capabilities across multiple dimensions:

Manual Testing

Navigate to the CloudFront URL from the deployment output to interact with the quiz application. The interface allows you to:

• Create new quizzes with multiple choice questions
• Submit quiz responses and receive immediate scoring
• View leaderboards with top performers
• Test email notifications through the MailHog extension

Note: If you have deployed the application using AWS CLI, sample quiz data would have been seeded to make local testing easier.

End-to-End Integration Testing

Run the complete test suite to validate quiz creation, submission, and scoring:

pytest tests/test_infra.py

The automated tests utilize the AWS SDK for Python (boto3) and the requests library to interact with the quiz application API.

Advanced Features with LocalStack Pro

Resource Browser

Use the LocalStack Web Application to inspect your deployed resources:

• DynamoDB Tables: View table data and query operations
• Lambda Functions: Monitor function invocations and logs
• API Gateway: Inspect API endpoints and request routing

Cloud Pods for Quick Setup

Skip the deployment step by loading a pre-configured environment:

localstack restart
localstack pod load serverless-quiz-app

This instantly loads the complete application infrastructure from a saved state.

Conclusion

In this tutorial, we’ve built a complete serverless quiz application demonstrating key serverless patterns:

• Event-driven architecture with API Gateway triggering Lambda functions
• NoSQL data persistence using DynamoDB for scalable storage
• Stateless function design enabling automatic scaling
• RESTful API design for clean client-server communication

The application showcases how LocalStack enables rapid serverless development by providing a local AWS environment for testing and iteration. This approach allows developers to:

• Test serverless applications without cloud costs
• Develop offline with full AWS service emulation
• Validate application logic before production deployment
• Iterate quickly during development cycles

For production deployment, the same code and configuration can be deployed to AWS with minimal changes, demonstrating the power of LocalStack for serverless development workflows.
