Elastic Kubernetes Service (EKS)

Introduction

Elastic Kubernetes Service (EKS) is a managed Kubernetes service that makes it easy to run Kubernetes on AWS without installing, operating, and maintaining your own Kubernetes control plane or worker nodes. Kubernetes is an open-source system for automating containerized applications’ deployment, scaling, and management.

LocalStack allows you to use the EKS APIs in your local environment to spin up embedded Kubernetes clusters in your local Docker engine or use an existing Kubernetes installation you can access from your local machine (defined in $HOME/.kube/config). The supported APIs are available on our API Coverage section, which provides information on the extent of EKS’s integration with LocalStack.

Getting started

This guide is designed for users new to Elastic Kubernetes Service and assumes basic knowledge of the AWS CLI and our awslocal wrapper script. To interact with the Kubernetes cluster, you should also install kubectl.

Start your LocalStack container using your preferred method. We will demonstrate how you can auto-install an embedded Kubernetes cluster, configure ingress, and deploy a sample service with ECR.

Create an embedded Kubernetes cluster

The default approach for creating Kubernetes clusters using the local EKS API is by setting up an embedded k3d kube cluster within Docker. LocalStack seamlessly manages the download and installation process, making it hassle-free for users. In most cases, the installation is automatic, eliminating the need for any manual customizations.

You can create a new cluster using the CreateCluster API. Run the following command:

awslocal eks create-cluster \
  --name cluster1 \
  --role-arn "arn:aws:iam::000000000000:role/eks-role" \
  --resources-vpc-config "{}"

Output

{
    "cluster": {
        "name": "cluster1",
        "arn": "arn:aws:eks:us-east-1:000000000000:cluster/cluster1",
        "createdAt": "2022-04-13T16:38:24.850000+02:00",
        "roleArn": "arn:aws:iam::000000000000:role/eks-role",
        "resourcesVpcConfig": {},
        "identity": {
            "oidc": {
                "issuer": "https://localhost.localstack.cloud/eks-oidc"
            }
        },
        "status": "CREATING",
        "clientRequestToken": "cbdf2bb6-fd3b-42b1-afe0-3c70980b5959"
    }
}

Note

When setting up a local EKS cluster, if you encounter a "status": "FAILED" in the command output and see Unable to start EKS cluster in LocalStack logs, remove or rename the ~/.kube/config file on your machine and retry. The CLI mounts this file automatically for CLI versions before 3.7, leading EKS to assume you intend to use the specified cluster, a feature that has specific requirements.

You can use the docker CLI to check that some containers have been created:

docker ps

Output

CONTAINER ID   IMAGE                          COMMAND                  CREATED          STATUS          PORTS                                           NAMES
...
b335f7f089e4   rancher/k3d-proxy:5.0.1-rc.1   "/bin/sh -c nginx-pr…"   1 minute ago   Up 1 minute   0.0.0.0:8081->80/tcp, 0.0.0.0:44959->6443/tcp   k3d-cluster1-serverlb
f05770ec8523   rancher/k3s:v1.21.5-k3s2       "/bin/k3s server --t…"   1 minute ago   Up 1 minute
...

After successfully creating and initializing the cluster, we can easily find the server endpoint, using the DescribeCluster API. Run the following command:

awslocal eks describe-cluster --name cluster1

Output

{
    "cluster": {
        "name": "cluster1",
        "arn": "arn:aws:eks:us-east-1:000000000000:cluster/cluster1",
        "createdAt": "2022-04-13T17:12:39.738000+02:00",
        "endpoint": "https://localhost.localstack.cloud:4511",
        "roleArn": "arn:aws:iam::000000000000:role/eks-role",
        "resourcesVpcConfig": {},
        "identity": {
            "oidc": {
                "issuer": "https://localhost.localstack.cloud/eks-oidc"
            }
        },
        "status": "ACTIVE",
        "certificateAuthority": {
            "data": "..."
        },
        "clientRequestToken": "d188f578-b353-416b-b309-5d8c76ecc4e2"
    }
}

Utilizing ECR Images within EKS

You can now use ECR (Elastic Container Registry) images within your EKS environment.

Initial configuration

To modify the return value of resource URIs for most services, including ECR, you can utilize the LOCALSTACK_HOST variable in the configuration. By default, ECR returns a repositoryUri starting with localhost.localstack.cloud, such as: localhost.localstack.cloud:<port>/<repository-name>.

Note

In this section, we assume that localhost.localstack.cloud resolves in your environment, and LocalStack is connected to a non-default bridge network. For more information, refer to the article about DNS rebind protection.

If the domain localhost.localstack.cloud does not resolve on your host, you can still proceed by setting LOCALSTACK_HOST=localhost (not recommended).

LocalStack will take care of the DNS resolution of localhost.localstack.cloud within ECR itself, allowing you to use the localhost:<port>/<repository_name> URI for tagging and pushing the image on your host.

Once you have configured this correctly, you can seamlessly use your ECR image within EKS as expected.

Deploying a sample application from an ECR image

To showcase this behavior, let’s go through a concise step-by-step guide that will lead us to the successful pulling of an image from local ECR. For the purpose of this guide, we will retag the nginx image to be pushed to a local ECR repository under a different name, and then utilize it for a pod configuration.

You can create a new ECR repository using the CreateRepository API. Run the following command:

awslocal ecr create-repository --repository-name "fancier-nginx"

Output

{
    "repository": {
        "repositoryArn": "arn:aws:ecr:us-east-1:000000000000:repository/fancier-nginx",
        "registryId": "c75fd0e2",
        "repositoryName": "fancier-nginx",
        "repositoryUri": "000000000000.dkr.ecr.us-east-1.localhost.localstack.cloud:4566/fancier-nginx",
        "createdAt": "2022-04-13T14:22:47+02:00",
        "imageTagMutability": "MUTABLE",
        "imageScanningConfiguration": {
            "scanOnPush": false
        },
        "encryptionConfiguration": {
            "encryptionType": "AES256"
        }
    }
}

You can now pull the nginx image from Docker Hub using the docker CLI:

docker pull nginx

You can further tag the image to be pushed to ECR:

docker tag nginx 000000000000.dkr.ecr.us-east-1.localhost.localstack.cloud:4566/fancier-nginx

Finally, you can push the image to local ECR:

docker push 000000000000.dkr.ecr.us-east-1.localhost.localstack.cloud:4566/fancier-nginx

Now, let us set up the EKS cluster using the image pushed to local ECR.

Next, we can configure kubectl to use the EKS cluster, using the UpdateKubeconfig API. Run the following command:

awslocal eks update-kubeconfig --name cluster1 && \
    kubectl config use-context arn:aws:eks:us-east-1:000000000000:cluster/cluster1

Output

...
Added new context arn:aws:eks:us-east-1:000000000000:cluster/cluster1 to /home/localstack/.kube/config
Switched to context "arn:aws:eks:us-east-1:000000000000:cluster/cluster1".
...

You can now go ahead and add a deployment configuration for the fancier-nginx image.

cat <<EOF | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: fancier-nginx
  labels:
    app: fancier-nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: fancier-nginx
  template:
    metadata:
      labels:
        app: fancier-nginx
    spec:
      containers:
      - name: fancier-nginx
        image: 000000000000.dkr.ecr.us-east-1.localhost.localstack.cloud:4566/fancier-nginx:latest
        ports:
        - containerPort: 80
EOF

You can now describe the pod to see if the image was pulled successfully:

kubectl describe pod fancier-nginx

In the events, we can see that the pull from ECR was successful:

Output

  Normal  Pulled     10s   kubelet            Successfully pulled image "000000000000.dkr.ecr.us-east-1.localhost.localstack.cloud:4566/fancier-nginx:latest" in 2.412775896s

Tip

Public Docker images from registry.k8s.io can be pulled without additional configuration from EKS nodes, but if you pull images from any other locations that resolve to S3 you can configure DNS_NAME_PATTERNS_TO_RESOLVE_UPSTREAM=<bucket-name>\.s3.*\.amazonaws\.com in your configuration.

Configuring an Ingress for your services

To make an EKS service externally accessible, it is necessary to create an Ingress configuration, which exposes the service on a specific path to the load balancer.

For our sample deployment, we can create an nginx Kubernetes service by applying the following configuration:

cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Service
metadata:
  name: nginx
spec:
  selector:
    app: fancier-nginx
  ports:
    - name: http
      protocol: TCP
      port: 80
      targetPort: 80
EOF

Use the following ingress configuration to expose the nginx service on path /test123:

cat <<EOF | kubectl apply -f -
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: nginx
  annotations:
    ingress.kubernetes.io/ssl-redirect: "false"
spec:
  rules:
    - http:
        paths:
          - path: /test123
            pathType: Prefix
            backend:
              service:
                name: nginx
                port:
                  number: 80
EOF

You will be able to send a request to nginx via the load balancer port 8081 from the host:

curl http://localhost:8081/test123

Output

<html>
...
<hr><center>nginx/1.21.6</center>
...

Tip

You can customize the Load Balancer port by configuring EKS_LOADBALANCER_PORT in your environment.

Enabling HTTPS with local SSL/TLS certificate for the Ingress

To enable HTTPS for your endpoints, you can configure Kubernetes to use SSL/TLS with the certificate for local domain names *.localhost.localstack.cloud.

The local EKS cluster comes pre-configured with a secret named ls-secret-tls, which can be conveniently utilized to define the tls section in the ingress configuration:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: test-ingress
  annotations:
    ingress.kubernetes.io/ssl-redirect: "false"
    traefik.ingress.kubernetes.io/router.entrypoints: web,websecure
    traefik.ingress.kubernetes.io/router.tls: "true"
spec:
  tls:
  - secretName: ls-secret-tls
    hosts:
    - myservice.localhost.localstack.cloud
  ...

Once you have deployed your service using the mentioned ingress configuration, it will be accessible via the HTTPS endpoint https://myservice.localhost.localstack.cloud.

Remember that the ingress controller does not support HTTP/HTTPS multiplexing within the same Ingress. Consequently, if you want your service to be accessible via HTTP and HTTPS, you must create two separate Ingress definitions — one Ingress for HTTP and another for HTTPS.

Note

The ls-secret-tls secret is created in the default namespace. If your ingress and services are residing in a custom namespace, it is essential to copy the secret to that custom namespace to make use of it.

Use an existing Kubernetes installation

You can also access the EKS API using your existing local Kubernetes installation. This can be achieved by setting the configuration variable EKS_K8S_PROVIDER=local and mounting the $HOME/.kube/config file into the LocalStack container. When using a docker-compose.yml file, you need to add a bind mount like this:

volumes:
  - "${HOME}/.kube/config:/root/.kube/config"

When using the LocalStack CLI, please configure the DOCKER_FLAGS to mount the kubeconfig into the container:

DOCKER_FLAGS="-v ${HOME}/.kube/config:/root/.kube/config" localstack start

Note

Using an existing Kubernetes installation is currently only possible when the authentication with the cluster uses X509 client certificates: https://kubernetes.io/docs/reference/access-authn-authz/authentication/#x509-client-certificates

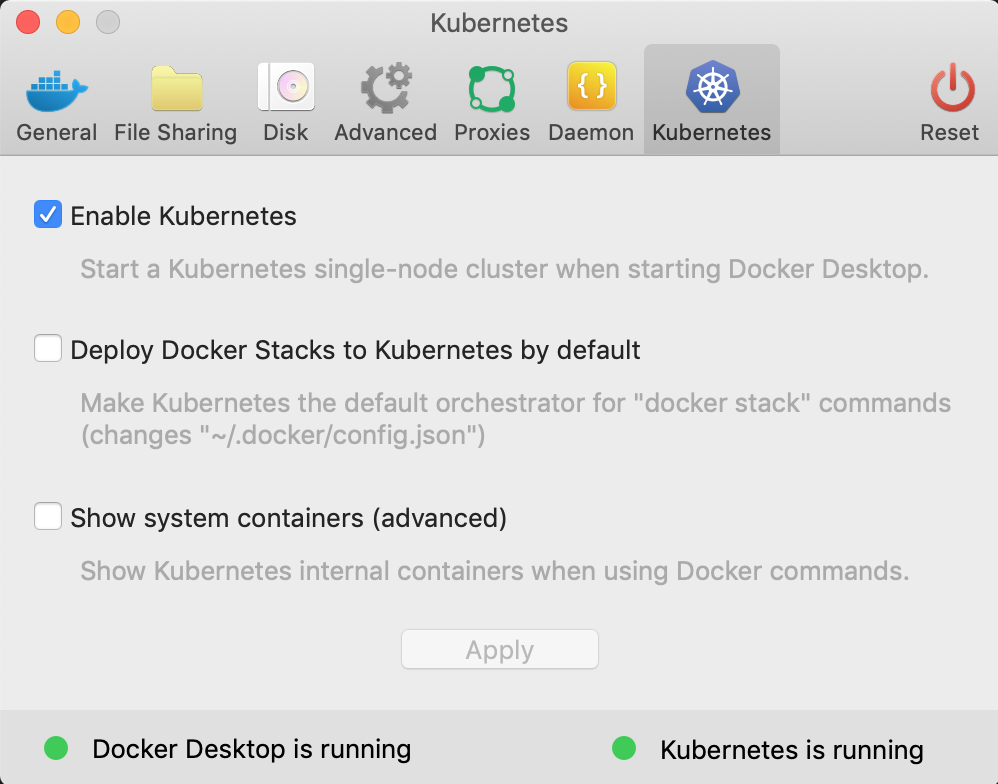

In recent versions of Docker, you can enable Kubernetes as an embedded service running inside Docker. The picture below illustrates the Kubernetes settings in Docker for macOS (similar configurations apply for Linux/Windows). By default, the Kubernetes API is assumed to run on the local TCP port 6443.

You can create an EKS Cluster configuration using the following command:

awslocal eks create-cluster --name cluster1 --role-arn arn:aws:iam::000000000000:role/eks-role --resources-vpc-config '{}'

Output

{
    "cluster": {
        "name": "cluster1",
        "arn": "arn:aws:eks:eu-central-1:000000000000:cluster/cluster1",
        "createdAt": "Sat, 05 Oct 2019 12:29:26 GMT",
        "endpoint": "https://172.17.0.1:6443",
        "status": "ACTIVE",
        ...
    }
}

And check that it was created with:

awslocal eks list-clusters

Output

{
    "clusters": [
        "cluster1"
    ]
}

To interact with your Kubernetes cluster, configure your Kubernetes client (such as kubectl or other SDKs) to point to the endpoint provided in the create-cluster output mentioned earlier. However, depending on whether you’re calling the Kubernetes API from your local machine or from within a Lambda function, you might need to use different endpoint URLs.

For local machine interactions, use https://localhost:6443 as the endpoint URL. If you are accessing the Kubernetes API from within a Lambda function, you should use https://172.17.0.1:6443 as the endpoint URL, assuming that 172.17.0.1 is the IP address of the Docker network bridge.

By using the appropriate endpoint URL based on your context, you can effectively communicate with your Kubernetes cluster and manage your resources as needed.

Customizing the Kubernetes Load Balancer Ports

By default, the Kubernetes load balancer (LB) is exposed on port 8081. If you need to customize the port or expose the load balancer on multiple ports, you can utilize the special tag name _lb_ports_ during the cluster creation process.

For instance, if you want to expose the load balancer on ports 8085 and 8086, you can use the following tag definition when creating the cluster:

awslocal eks create-cluster \
  --name cluster1 \
  --role-arn arn:aws:iam::000000000000:role/eks-role \
  --resources-vpc-config '{}' --tags '{"_lb_ports_":"8085,8086"}'

Routing Traffic to Services on Different Endpoints

When working with EKS, a common scenario is to access multiple Kubernetes services behind different endpoints.

For instance, you might have multiple microservices, each following a common path versioning scheme, such as API request paths starting with /v1/.... In such cases, path-based routing may not be ideal if you need the services to be accessible in a uniform manner.

To address this requirement, we recommend utilizing host-based routing rules, as demonstrated in the example below:

cat <<EOF | kubectl apply -f -
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: multi-services
  annotations:
    ingress.kubernetes.io/ssl-redirect: "false"
spec:
  rules:
  - host: eks-service-1.localhost.localstack.cloud
    http:
      paths:
      - path: /v1
        pathType: Prefix
        backend:
          service:
            name: service-1
            port:
              number: 80
  - host: eks-service-2.localhost.localstack.cloud
    http:
      paths:
      - path: /v1
        pathType: Prefix
        backend:
          service:
            name: service-2
            port:
              number: 80
EOF

The example defines routing rules for two local endpoints - the first rule points to a service service-1 accessible under /v1, and the second rule points to a service service-2 accessible under the same path /v1.

In the provided example, we define routing rules for two local endpoints. The first rule directs traffic to a service named service-1, accessible under the path /v1. Similarly, the second rule points to a service named service-2, also accessible under the same path /v1.

This approach enables us to access the two distinct services using the same path and port number, but with different host names. This host-based routing mechanism ensures that each service is uniquely identified based on its designated host name, allowing for a uniform and organized way of accessing multiple services within the EKS cluster.

curl http://eks-service-1.localhost.localstack.cloud:8081/v1

Output

... [output of service 1]

curl http://eks-service-2.localhost.localstack.cloud:8081/v1

Output

... [output of service 2]

It is important to note that the host names eks-service-1.localhost.localstack.cloud and eks-service-2.localhost.localstack.cloud both resolve to 127.0.0.1 (localhost). Consequently, you can utilize them to communicate with your service endpoints and distinguish between different services within the Kubernetes load balancer.

However, it might encounter issues in scenarios where you intend to run your Load Balancer (LB) on standard ports such as 80/443 since some of these ports may already be occupied on your local machine. For instance, by default, LocalStack allocates port 443 to expose APIs via the HTTPS endpoint (https://localhost.localstack.cloud). Hence, it’s crucial to ensure that you expose your LB on a custom, non-standard port to prevent conflicts.

Additionally, note that LocalStack EKS employs Traefik as the Kubernetes ingress controller internally.

Mounting directories from host to pod

If you have specific directories which you want to mount from your local dev machine into one of your pods, you can do this with two simple steps:

If you have specific directories that you want to mount from your local development machine into one of your pods, you can achieve this in two simple steps.

When creating your cluster, include the special tag _volume_mount_, which allows you to define the desired volume mounting configuration from your local development machine to the cluster nodes.

awslocal eks create-cluster \
  --name cluster1 \
  --role-arn arn:aws:iam::000000000000:role/eks-role \
  --resources-vpc-config '{}' \
  --tags '{"_volume_mount_":"/path/on/host:/path/on/node"}'

Output

{
    "cluster": {
        "name": "cluster1",
        "arn": "arn:aws:eks:eu-central-1:000000000000:cluster/cluster1",
        "createdAt": "Sat, 05 Oct 2019 12:29:26 GMT",
        "endpoint": "https://172.17.0.1:6443",
        "status": "ACTIVE",
        "tags": {
            "_volume_mount_" : "/path/on/host:/path/on/node"
        }
        ...
    }
}

Note

Note that the tag was previously referred to as __k3d_volume_mount__, but it has now been renamed to _volume_mount_. As a result, the tag name __k3d_volume_mount__ is considered deprecated and will be removed in an upcoming release.

After creating your cluster with the _volume_mount_ tag, you can create your path with volume mounts as usual. The configuration for the volume mounts can be set up similar to this:

apiVersion: v1
kind: Pod
metadata:
  name: test
spec:
  volumes:
    - name: example-volume
      hostPath:
         path: /path/on/node
  containers:
  - image: alpine:3.12
    command: ["/bin/sh","-c"]
    args:
      - echo "Starting the update command";
        apk update;
        echo "Adding the openssh command";
        apk add openssh;
        echo "openssh completed";
        sleep 240m;
    imagePullPolicy: IfNotPresent
    name: alpine
    volumeMounts:
      - mountPath: "/path/on/pod"
        name: example-volume
  restartPolicy: Always

Supported Versions

LocalStack uses k3s under the hood for creating EKS clusters. Below is the list of supported Kubernetes versions and their corresponding k3s versions. The default version is 1.31.

Kubernetes Version	k3s Version	EKS Platform Version
1.32	v1.32.1-k3s1	eks.3
1.31	v1.31.5-k3s1	eks.19
1.30	v1.30.9-k3s1	eks.27
1.29	v1.29.13-k3s1	eks.30
1.28	v1.28.15-k3s1	eks.36
1.27	v1.27.16-k3s1	eks.40
1.26	v1.26.15-k3s1	eks.42
1.25	v1.25.16-k3s4	eks.42

Users can specify the desired version when creating an EKS cluster in LocalStack using the EKS_K3S_IMAGE_TAG configuration variable when starting LocalStack.

Resource Browser

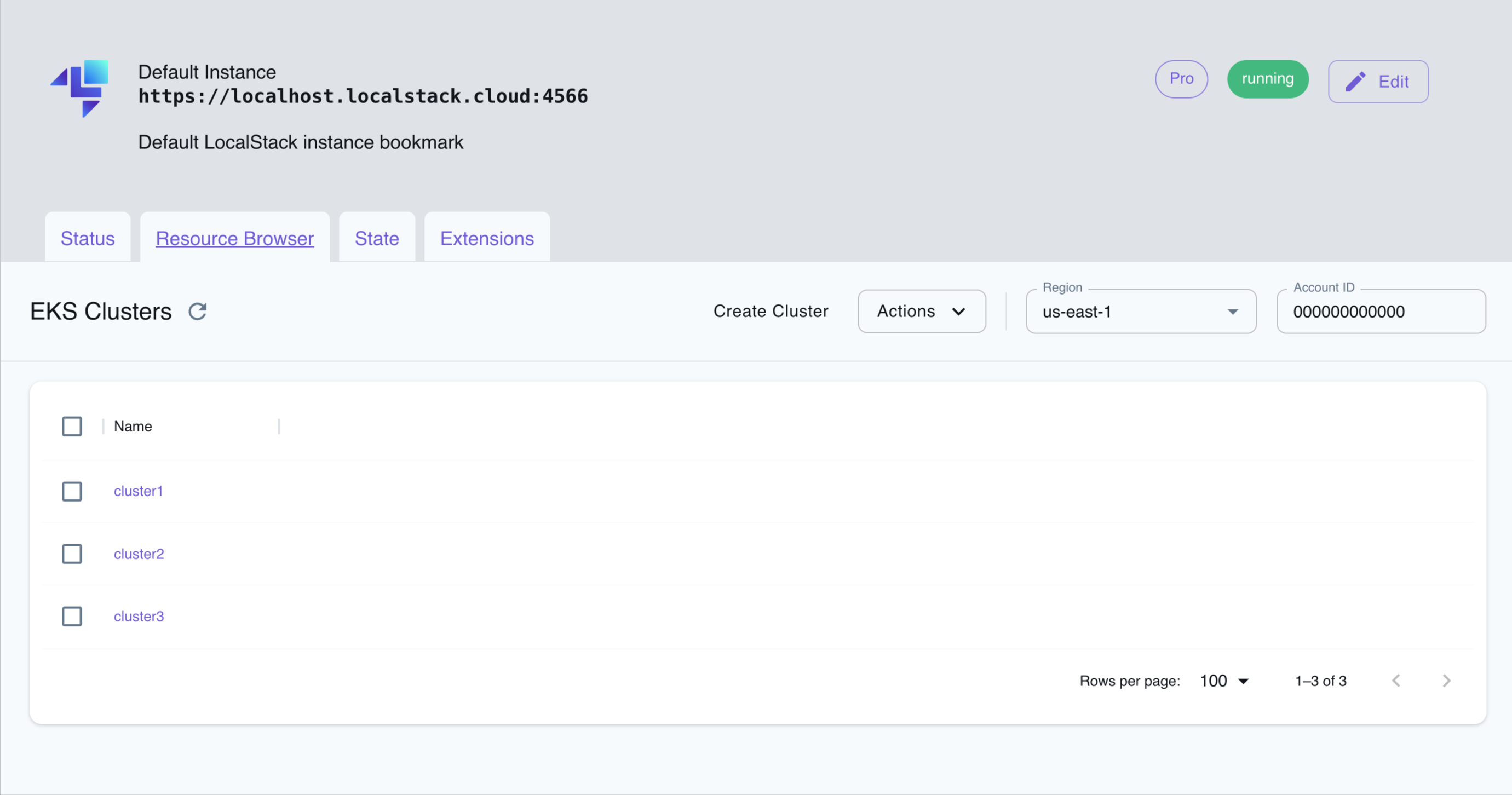

The LocalStack Web Application provides a Resource Browser for managing EKS clusters. You can access the Resource Browser by opening the LocalStack Web Application in your browser, navigating to the Resource Browser section, and then clicking on EKS under the Compute section.

The Resource Browser allows you to perform the following actions:

• Create Cluster: Create a new EKS cluster by clicking on the Create Cluster button and providing the cluster name among other details.
• View Cluster Details: View the details of an existing EKS cluster by clicking on the cluster name.
• Edit Cluster: Edit the configuration of an existing EKS cluster by clicking on the Edit button while viewing the cluster details.
• Delete Cluster: Select the cluster name and click on the Actions button followed by Remove Selected button.

API Coverage

Operation ▲	Implemented	Image

PreviousPage 1 of 0Next
