Event Studio
Introduction
Section titled “Introduction”Event Studio allows users to view, collect, and inspect data exchanges, including event payloads and metadata, between AWS services. It enhances system observability by displaying the data exchanged at every stage, facilitating clear understanding of event flows. It further centralizes debugging by enabling event replay at any system stage for detailed analysis and troubleshooting. In addition, it serves as a single point of truth to understand potential errors, service configuration mismatches and IAM permission issues.
With Event Studio, you can:
- Observe and understand the flow of events through your system.
- Replay events to troubleshoot AWS services involved in your workflow.
- Identify errors and obtain detailed information for corrections.
- Get immediate feedback on any misconfigurations in your services.
- Gain insights into IAM policies and detect missing permissions.
- Enhance event contexts for advanced flow tracing.
Installation
Section titled “Installation”To install Event Studio, start your LocalStack container with your LOCALSTACK_AUTH_TOKEN
:
export LOCALSTACK_AUTH_TOKEN=...localstack start
Event Studio is available as a LocalStack Extension.
To install it, use the extensions
sub-command in the localstack
CLI.
Run the following command to install Event Studio:
localstack extensions install localstack-extension-event-studio
Check the LocalStack logs for Event Studio output, where you should see logs like:
localstack-main | 2024-11-21T08:47:25.688 INFO --- [ MainThread] l.e.patterns.webapp : eventstudio extension available at http://localhost.localstack.cloud:4566/_extension/eventstudiolocalstack-main | 2024-11-21T08:47:25.694 INFO --- [ MainThread] l.e.patterns.webapp : eventstudio extension available at http://eventstudio.localhost.localstack.cloud:4566localstack-main | 2024-11-21T08:47:25.858 INFO --- [ady_monitor)] eventstudio.extension : Extension Loadedlocalstack-main | Ready.
You can navigate to https://eventstudio.localhost.localstack.cloud:4566 in your browser to view your events.
Features

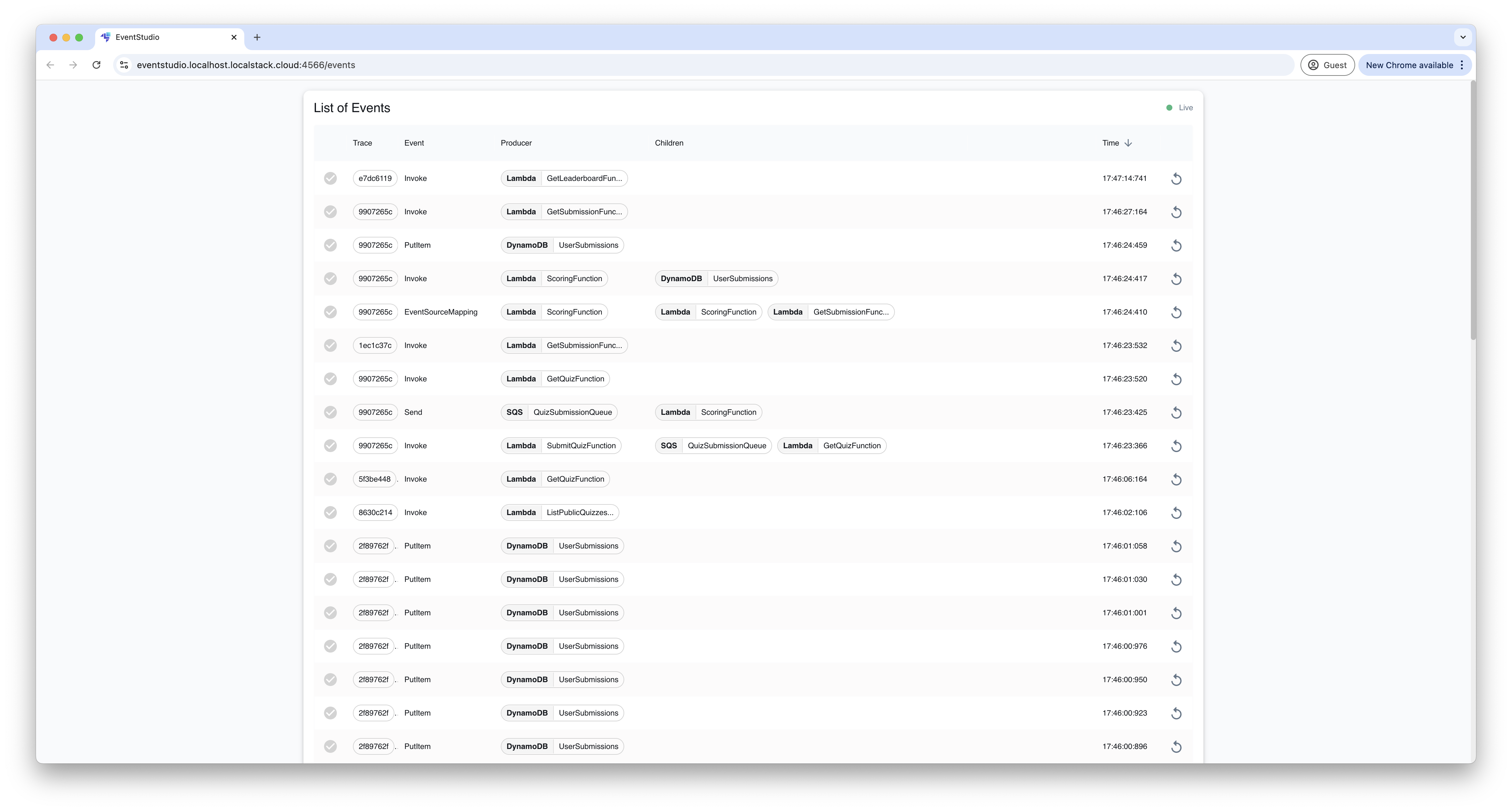

Section titled “Features”List the local events
Section titled “List the local events”With Event Studio, you can view a detailed list of events in your application, including event producers, types, and timestamps. The interface enables you to trace the flow of events, identify relationships between services, and analyze patterns for debugging or optimization.

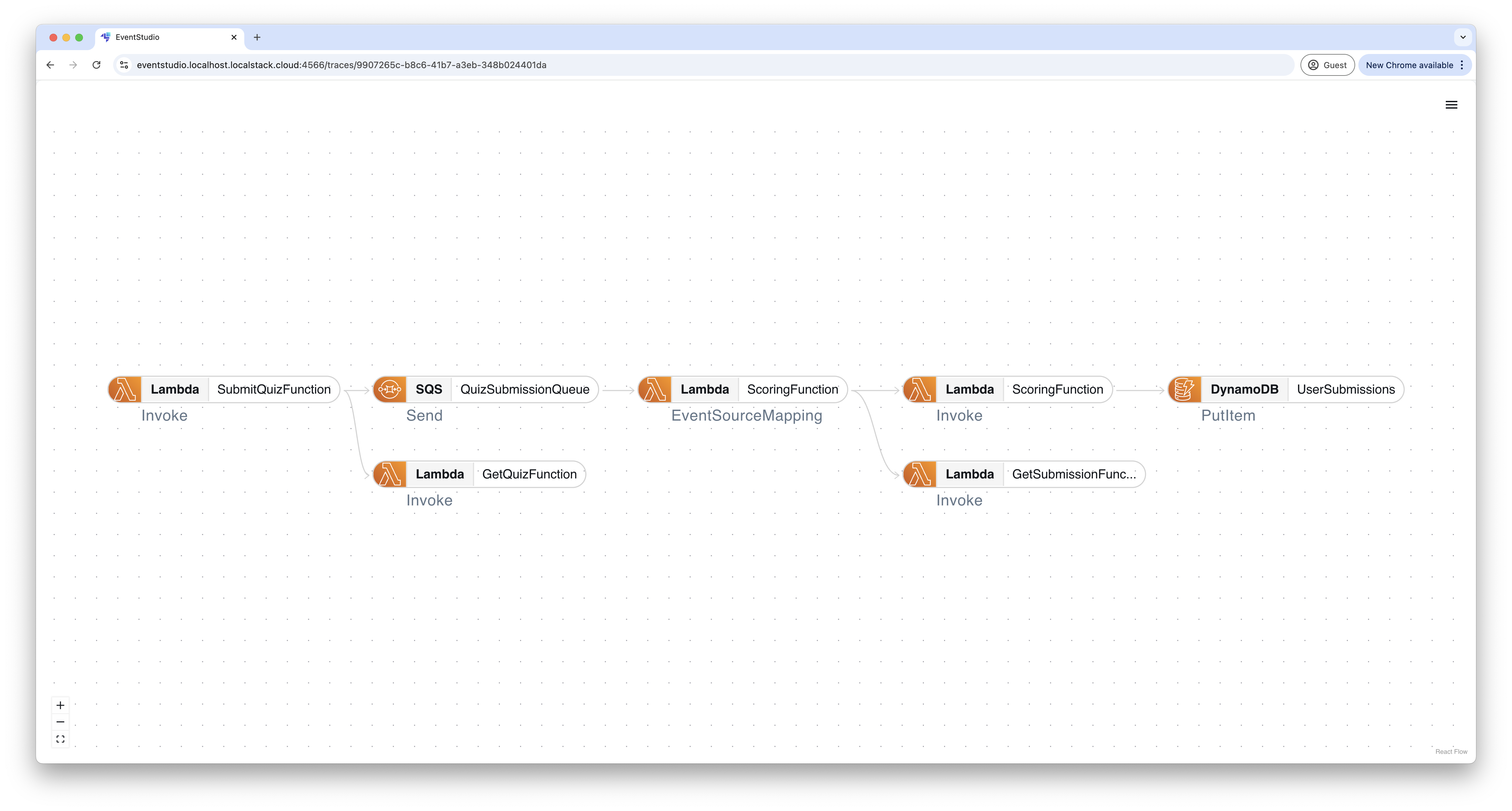

Display the connections
Section titled “Display the connections”By clicking on the events, you can visualize the intricate relationships between AWS services in your event-driven architecture. Event Studio offers a clear, interactive graph that shows how different AWS services interact, making it easy to track data flow, identify bottlenecks, and debug issues.

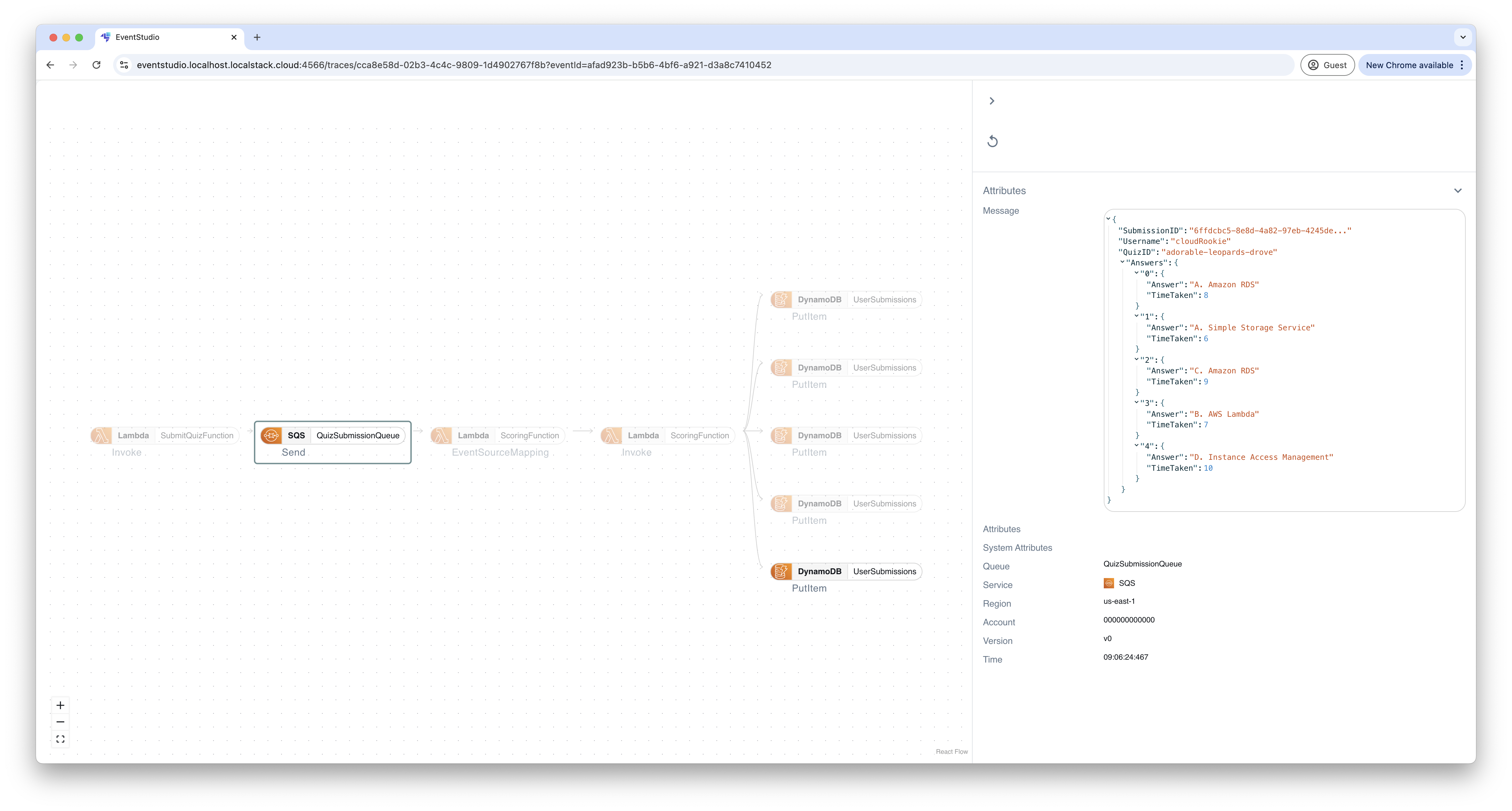

View Event Details
Section titled “View Event Details”When you click on the service, you can drill down into the specifics of each event, including the data exchanged between services, detailed payloads, and metadata. Event Studio highlights errors, warnings, and potential IAM permission issues, enabling precise debugging and troubleshooting. This detailed view ensures complete transparency and insight into system interactions at every step.

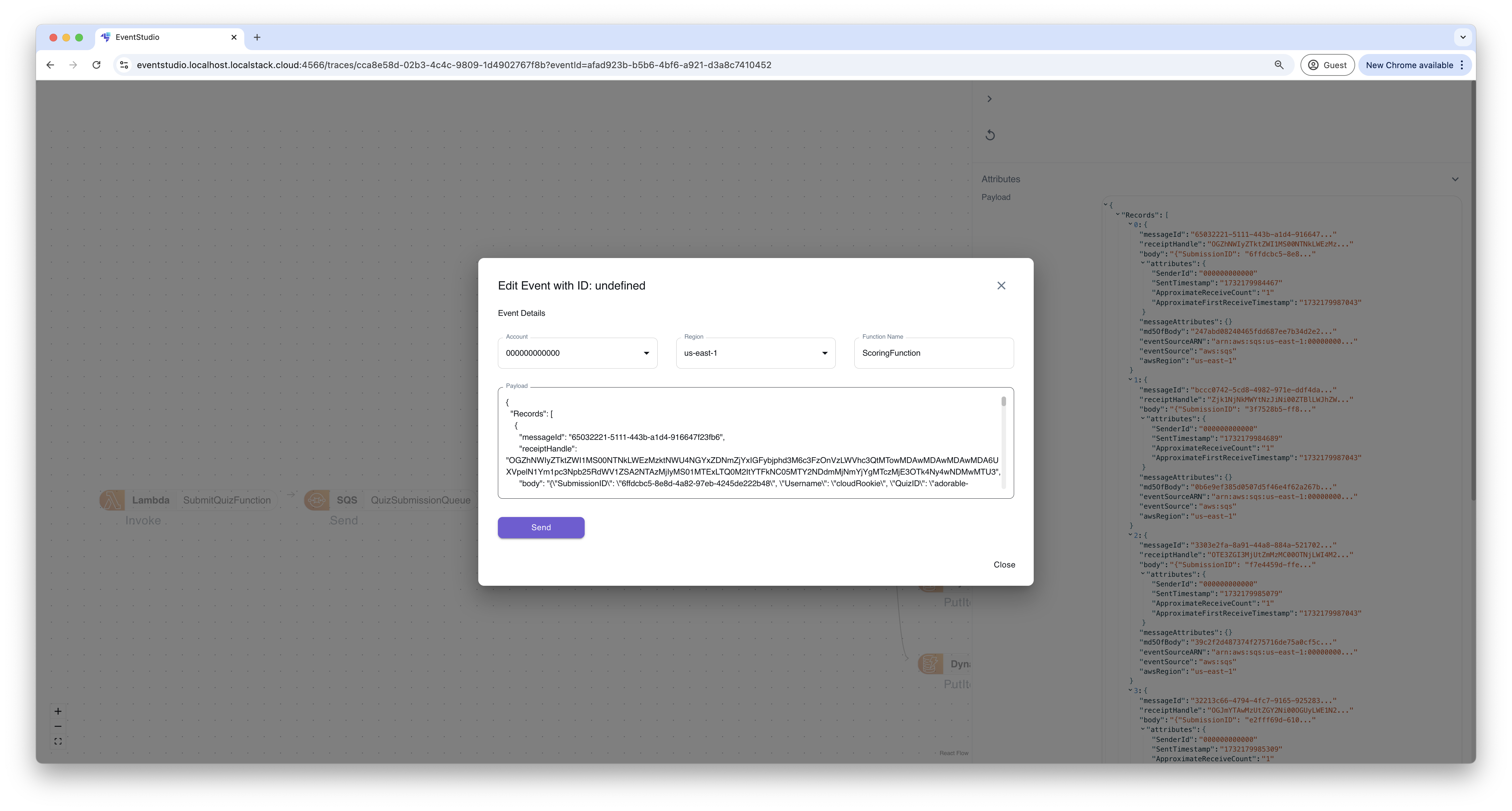

Edit & Replay
Section titled “Edit & Replay”Finally, you can modify event payloads and metadata directly within the interface to test different scenarios or adjust configurations. Replay edited events through your system to analyze workflows, validate fixes, and ensure accurate service interactions. This is essential for effectively debugging complex event-driven architectures.
Supported Services
Section titled “Supported Services”The following services are supported on Event Studio:
