Redshift

Introduction

RedShift is a cloud-based data warehouse solution which allows end users to aggregate huge volumes of data and parallel processing of data. RedShift is fully managed by AWS and serves as a petabyte-scale service which allows users to create visualization reports and critically analyze collected data. The query results can be saved to an S3 Data Lake while additional analytics can be provided by Athena or SageMaker.

LocalStack allows you to use the RedShift APIs in your local environment to analyze structured and semi-structured data across local data warehouses and data lakes. The supported APIs are available on the API coverage section for Redshift and Redshift Data, which provides information on the extent of RedShift’s integration with LocalStack.

Getting started

This guide is designed for users new to RedShift and assumes basic knowledge of the AWS CLI and our lstk aws command.

Start your LocalStack container using your preferred method. We will demonstrate how to create a RedShift cluster and database while using a Glue Crawler to populate the metadata store with the schema of the RedShift database tables using the AWS CLI.

Define the variables

First, we will define the variables we will use throughout this guide. Export the following variables in your shell:

REDSHIFT_CLUSTER_IDENTIFIER="redshiftcluster"
REDSHIFT_SCHEMA_NAME="public"
REDSHIFT_DATABASE_NAME="db1"
REDSHIFT_TABLE_NAME="sales"
REDSHIFT_USERNAME="crawlertestredshiftusername"
REDSHIFT_PASSWORD="crawlertestredshiftpassword"
GLUE_DATABASE_NAME="gluedb"
GLUE_CONNECTION_NAME="glueconnection"
GLUE_CRAWLER_NAME="gluecrawler"

The above variables will be used to create a RedShift cluster, database, table, and user. You will also create a Glue database, connection, and crawler to populate the Glue Data Catalog with the schema of the RedShift database tables.

Create a RedShift cluster and database

You can create a RedShift cluster using the CreateCluster API. The following command will create a RedShift cluster with the variables defined above:

lstk aws redshift create-cluster \
      --cluster-identifier $REDSHIFT_CLUSTER_IDENTIFIER \
      --db-name $REDSHIFT_DATABASE_NAME \
      --master-username $REDSHIFT_USERNAME \
      --master-user-password $REDSHIFT_PASSWORD \
      --node-type n1

You can fetch the status of the cluster using the DescribeClusters API. Run the following command to extract the URL of the cluster:

REDSHIFT_URL=$(lstk aws redshift describe-clusters \
      --cluster-identifier $REDSHIFT_CLUSTER_IDENTIFIER | jq -r '(.Clusters[0].Endpoint.Address) + ":" + (.Clusters[0].Endpoint.Port|tostring)')

Create a Glue database, connection, and crawler

You can create a Glue database using the CreateDatabase API. The following command will create a Glue database:

lstk aws glue create-database \
      --database-input "{\"Name\": \"$GLUE_DATABASE_NAME\"}"

You can create a connection to the RedShift cluster using the CreateConnection API. The following command will create a Glue connection with the RedShift cluster:

lstk aws glue create-connection \
      --connection-input "{\"Name\":\"$GLUE_CONNECTION_NAME\", \"ConnectionType\": \"JDBC\", \"ConnectionProperties\": {\"USERNAME\": \"$REDSHIFT_USERNAME\", \"PASSWORD\": \"$REDSHIFT_PASSWORD\", \"JDBC_CONNECTION_URL\": \"jdbc:redshift://$REDSHIFT_URL/$REDSHIFT_DATABASE_NAME\"}}"

Finally, you can create a Glue crawler using the CreateCrawler API. The following command will create a Glue crawler:

lstk aws glue create-crawler \
      --name $GLUE_CRAWLER_NAME \
      --database-name $GLUE_DATABASE_NAME \
      --targets "{\"JdbcTargets\": [{\"ConnectionName\": \"$GLUE_CONNECTION_NAME\", \"Path\": \"$REDSHIFT_DATABASE_NAME/%/$REDSHIFT_TABLE_NAME\"}]}" \
      --role r1

Create table in RedShift

You can create a table in RedShift using the CreateTable API. The following command will create a table in RedShift:

REDSHIFT_STATEMENT_ID=$(lstk aws redshift-data execute-statement \
      --cluster-identifier $REDSHIFT_CLUSTER_IDENTIFIER \
      --database $REDSHIFT_DATABASE_NAME \
      --sql \
  "create table $REDSHIFT_TABLE_NAME(salesid integer not null, listid integer not null, sellerid integer not null, buyerid integer not null, eventid integer not null, dateid smallint not null, qtysold smallint not null, pricepaid decimal(8,2), commission decimal(8,2), saletime timestamp)" | jq -r .Id)

You can check the status of the statement using the DescribeStatement API. The following command will check the status of the statement:

wait "lstk aws redshift-data describe-statement \
      --id $REDSHIFT_STATEMENT_ID" ".Status" "FINISHED"

Run the crawler

You can run the crawler using the StartCrawler API. The following command will run the crawler:

lstk aws glue start-crawler \
      --name $GLUE_CRAWLER_NAME

You can wait for the crawler to finish using the GetCrawler API. The following command will wait for the crawler to finish:

wait "lstk aws glue get-crawler \
      --name $GLUE_CRAWLER_NAME" ".Crawler.State" "READY"

You can finally retrieve the schema of the table using the GetTable API. The following command will retrieve the schema of the table:

lstk aws glue get-table \
      --database-name $GLUE_DATABASE_NAME \
      --name "${REDSHIFT_DATABASE_NAME}_${REDSHIFT_SCHEMA_NAME}_${REDSHIFT_TABLE_NAME}"

Resource Browser

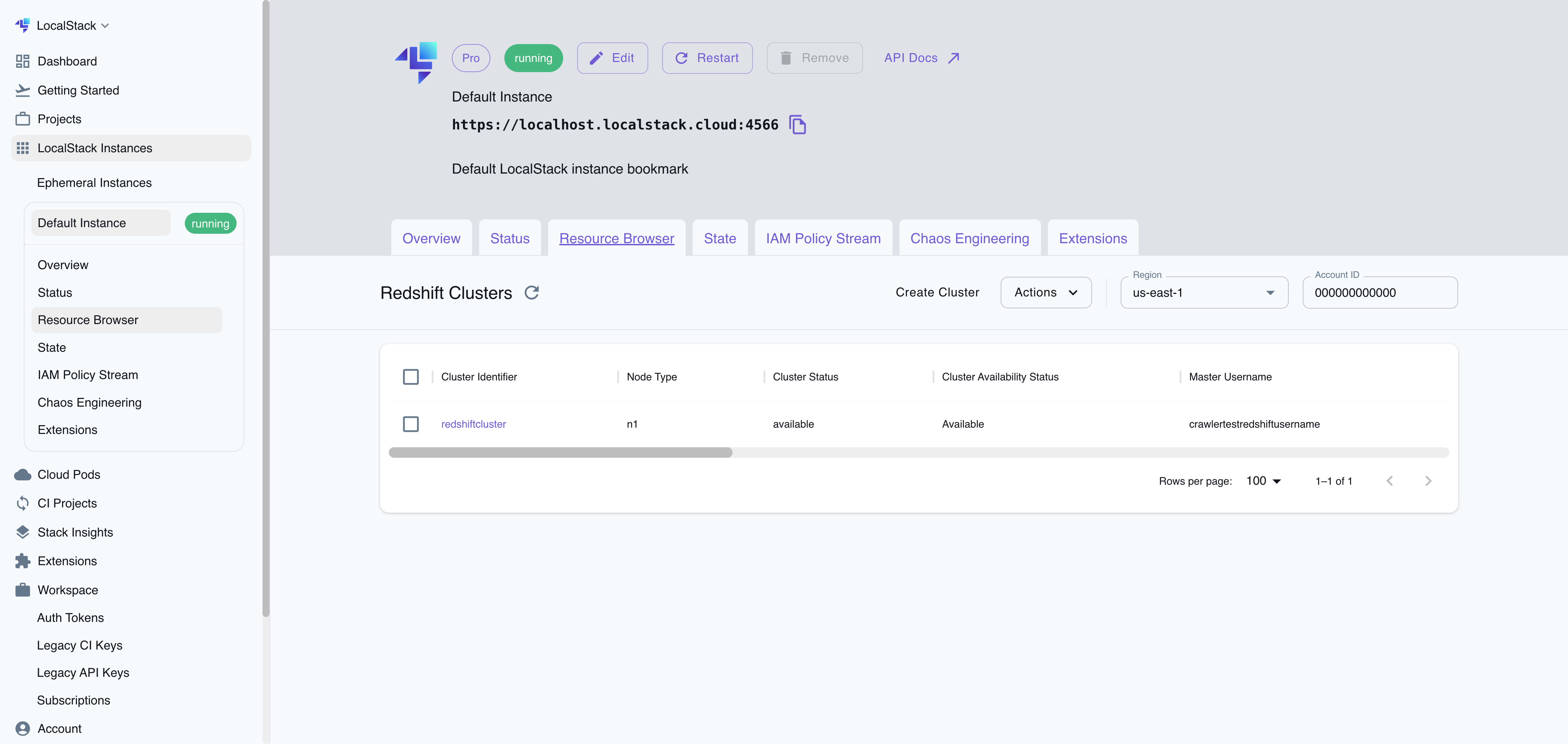

The LocalStack Web Application provides a Resource Browser for managing RedShift clusters. You can access the Resource Browser by opening the LocalStack Web Application in your browser, navigating to the Resources section, and then clicking on RedShift under the Analytics section.

RedShift Resource Browser

The Resource Browser allows you to perform the following actions:

Create Cluster: Create a new RedShift cluster by specifying the cluster identifier, database name, master username, master password, and node type.
View Cluster: View the details of a RedShift cluster, including the cluster identifier, database name, master username, master password, node type, and endpoint.
Edit Cluster: Edit an existing RedShift cluster by clicking the cluster name and clicking the EDIT CLUSTER button.
Remove Cluster: Remove an existing Redshift cluster by selecting it from the table and clicking the ACTIONS followed by Remove Selected button.

API Coverage

37 of 145 operations implemented

Available from Hobby; some service variants start at Ultimate. Licensing details

Find an API

Search the full operation list, then sort the table to compare current support.

Loading operations…

Search by operation name

		Verified on Kubernetes
Loading operations…

Complete static API list All 145 operations and their current support status

Operation	Status
AcceptReservedNodeExchange	Not implemented
AddPartner	Not implemented
AssociateDataShareConsumer	Not implemented
AuthorizeClusterSecurityGroupIngress	Implemented
AuthorizeDataShare	Not implemented
AuthorizeEndpointAccess	Not implemented
AuthorizeSnapshotAccess	Not implemented
BatchDeleteClusterSnapshots	Not implemented
BatchModifyClusterSnapshots	Not implemented
CancelResize	Not implemented
CopyClusterSnapshot	Not implemented
CreateAuthenticationProfile	Not implemented
CreateCluster	Implemented
CreateClusterParameterGroup	Implemented
CreateClusterSecurityGroup	Implemented
CreateClusterSnapshot	Implemented
CreateClusterSubnetGroup	Implemented
CreateCustomDomainAssociation	Not implemented
CreateEndpointAccess	Not implemented
CreateEventSubscription	Not implemented
CreateHsmClientCertificate	Not implemented
CreateHsmConfiguration	Not implemented
CreateIntegration	Not implemented
CreateQev2IdcApplication	Not implemented
CreateRedshiftIdcApplication	Not implemented
CreateScheduledAction	Not implemented
CreateSnapshotCopyGrant	Implemented
CreateSnapshotSchedule	Not implemented
CreateTags	Implemented
CreateUsageLimit	Not implemented
DeauthorizeDataShare	Not implemented
DeleteAuthenticationProfile	Not implemented
DeleteCluster	Implemented
DeleteClusterParameterGroup	Implemented
DeleteClusterSecurityGroup	Implemented
DeleteClusterSnapshot	Implemented
DeleteClusterSubnetGroup	Implemented
DeleteCustomDomainAssociation	Not implemented
DeleteEndpointAccess	Not implemented
DeleteEventSubscription	Not implemented
DeleteHsmClientCertificate	Not implemented
DeleteHsmConfiguration	Not implemented
DeleteIntegration	Not implemented
DeletePartner	Not implemented
DeleteQev2IdcApplication	Not implemented
DeleteRedshiftIdcApplication	Not implemented
DeleteResourcePolicy	Not implemented
DeleteScheduledAction	Not implemented
DeleteSnapshotCopyGrant	Implemented
DeleteSnapshotSchedule	Not implemented
DeleteTags	Implemented
DeleteUsageLimit	Not implemented
DeregisterNamespace	Not implemented
DescribeAccountAttributes	Not implemented
DescribeAuthenticationProfiles	Not implemented
DescribeClusterDbRevisions	Not implemented
DescribeClusterParameterGroups	Implemented
DescribeClusterParameters	Implemented
DescribeClusterSecurityGroups	Implemented
DescribeClusterSnapshots	Implemented
DescribeClusterSubnetGroups	Implemented
DescribeClusterTracks	Not implemented
DescribeClusterVersions	Not implemented
DescribeClusters	Implemented
DescribeCustomDomainAssociations	Not implemented
DescribeDataShares	Not implemented
DescribeDataSharesForConsumer	Not implemented
DescribeDataSharesForProducer	Not implemented
DescribeDefaultClusterParameters	Implemented
DescribeEndpointAccess	Not implemented
DescribeEndpointAuthorization	Not implemented
DescribeEventCategories	Not implemented
DescribeEventSubscriptions	Not implemented
DescribeEvents	Not implemented
DescribeHsmClientCertificates	Not implemented
DescribeHsmConfigurations	Not implemented
DescribeInboundIntegrations	Not implemented
DescribeIntegrations	Not implemented
DescribeLoggingStatus	Implemented
DescribeNodeConfigurationOptions	Not implemented
DescribeOrderableClusterOptions	Not implemented
DescribePartners	Not implemented
DescribeQev2IdcApplications	Not implemented
DescribeRedshiftIdcApplications	Not implemented
DescribeReservedNodeExchangeStatus	Not implemented
DescribeReservedNodeOfferings	Not implemented
DescribeReservedNodes	Not implemented
DescribeResize	Not implemented
DescribeScheduledActions	Not implemented
DescribeSnapshotCopyGrants	Implemented
DescribeSnapshotSchedules	Not implemented
DescribeStorage	Not implemented
DescribeTableRestoreStatus	Not implemented
DescribeTags	Implemented
DescribeUsageLimits	Not implemented
DisableLogging	Implemented
DisableSnapshotCopy	Implemented
DisassociateDataShareConsumer	Not implemented
EnableLogging	Implemented
EnableSnapshotCopy	Implemented
FailoverPrimaryCompute	Not implemented
GetClusterCredentials	Implemented
GetClusterCredentialsWithIAM	Not implemented
GetIdentityCenterAuthToken	Not implemented
GetReservedNodeExchangeConfigurationOptions	Not implemented
GetReservedNodeExchangeOfferings	Not implemented
GetResourcePolicy	Not implemented
ListRecommendations	Not implemented
ModifyAquaConfiguration	Not implemented
ModifyAuthenticationProfile	Not implemented
ModifyCluster	Implemented
ModifyClusterDbRevision	Not implemented
ModifyClusterIamRoles	Not implemented
ModifyClusterMaintenance	Not implemented
ModifyClusterParameterGroup	Implemented
ModifyClusterSnapshot	Not implemented
ModifyClusterSnapshotSchedule	Not implemented
ModifyClusterSubnetGroup	Implemented
ModifyCustomDomainAssociation	Not implemented
ModifyEndpointAccess	Not implemented
ModifyEventSubscription	Not implemented
ModifyIntegration	Not implemented
ModifyLakehouseConfiguration	Not implemented
ModifyQev2IdcApplication	Not implemented
ModifyRedshiftIdcApplication	Not implemented
ModifyScheduledAction	Not implemented
ModifySnapshotCopyRetentionPeriod	Implemented
ModifySnapshotSchedule	Not implemented
ModifyUsageLimit	Not implemented
PauseCluster	Implemented
PurchaseReservedNodeOffering	Not implemented
PutResourcePolicy	Not implemented
RebootCluster	Not implemented
RegisterNamespace	Not implemented
RejectDataShare	Not implemented
ResetClusterParameterGroup	Not implemented
ResizeCluster	Not implemented
RestoreFromClusterSnapshot	Implemented
RestoreTableFromClusterSnapshot	Not implemented
ResumeCluster	Implemented
RevokeClusterSecurityGroupIngress	Not implemented
RevokeEndpointAccess	Not implemented
RevokeSnapshotAccess	Not implemented
RotateEncryptionKey	Not implemented
UpdatePartnerStatus	Not implemented

API Coverage (Redshift Data)

6 of 12 operations implemented
